Core Functions of Auto Switches in Vehicle Electrical Systems
On/off Control and Circuit Path Selection in Automotive Applications
Car switches serve as the main connection point between drivers and their vehicle's electrical system, allowing them to turn on lights, activate wipers, and control various interior features. These switches have spring loaded parts inside and come in insulated cases so they can handle voltages ranging from 12 volts up to 48 volts DC. Most standard toggle and rocker style switches found in regular cars are built to carry currents between 10 amps and 30 amps. The newer versions of these switches can actually manage multiple circuits at once, which is really handy when controlling things like power windows throughout the car. Plus, many modern designs include built in safety features that limit how much current flows through them, stopping potential damage from electrical overloads before it happens.
Role of Auto Switches in Mode Selection and Signal Routing
Modern cars rely on auto switches that convert physical movements into electronic signals for things like transmissions and those fancy driver aids we see these days. According to some research from last year, around three out of four vehicles with advanced driver assistance systems actually use these multi-position switches to handle stuff like lane departure warnings and adaptive cruise controls. What makes these switches work so well? They typically have gold plated contacts inside, which keeps the electrical signals strong and stable. Even when the car is bouncing around on rough roads, these contacts maintain really low resistance levels, something like below 50 milliohms, ensuring reliable operation despite all the vibrations going on underneath the hood.
Enhancing System Reliability with Automatic Changeover Switches
Automatic changeover switches offer backup power solutions for vehicle electrical systems when the alternator fails. These devices switch between power sources without causing interruptions. Most models come with double-break contacts that can handle around 100 thousand cycles before needing replacement, plus they work reliably even at temperatures reaching 125 degrees Celsius. When things go wrong with the main power supply, these switches kick in to keep essential components running, including fuel pumps and engine control units. Fleet managers who tested them reported something pretty impressive actually. Their vehicles experienced roughly 63 percent fewer electrical problems than those relying on manual switching methods. That kind of reliability makes all the difference in keeping commercial operations moving smoothly day after day.
Common Types of Auto Switches: Function, Design, and Configuration
Auto switches vary widely in design and function, falling into three primary categories that define their application in modern vehicles. Selecting the right type ensures optimal performance and reliability.
Mechanical Variants: Toggle, Rocker, Push-Button, and Selector Switches

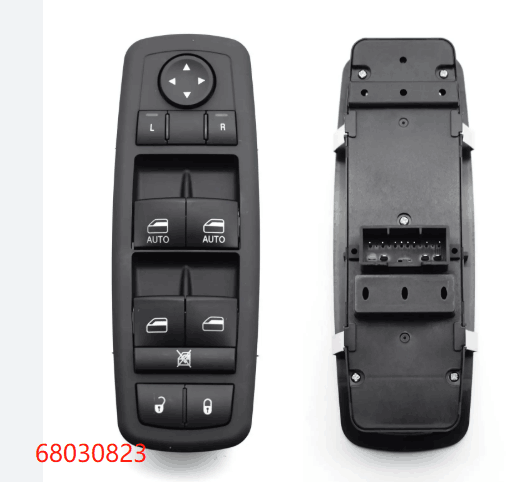

Mechanical switches continue to hold their ground where users need that physical connection and immediate response. Take toggle switches for instance they work with levers to keep circuits either open or closed, which makes them perfect for things like car lights and various accessories around the vehicle. Then there are rocker switches those little buttons that pivot back and forth, frequently seen controlling power windows in modern cars. Push buttons come in two flavors momentary ones that reset when released, and latching types that stay engaged until pressed again. These are commonly found in systems like starting engines. For situations needing multiple settings, selector switches take center stage, letting drivers switch between different HVAC modes with ease. Industry reports from 2025 show that roughly 68% of all mechanical switches installed in vehicles today still stick with these time tested designs because they just work better long term and people know how they function without guesswork.
Electrical Configurations: SPST, SPDT, DPST, and DPDT Switch Types
The way switches work depends largely on their pole and throw configuration. Take SPST switches for instance these are basically the simplest kind, just turning circuits on or off. Then there are SPDT switches which can send power down one of two different paths. Car headlights need this kind of switch when switching between high beams and regular lights. For situations where two circuits need to be controlled at once, engineers turn to DPST and DPDT switches. These are commonly found in modern electric vehicles managing battery connections. According to industry data, using DPST switches instead of several SPST ones cuts down on complicated wiring by about 40% in sophisticated car designs. This makes installation easier and reduces potential points of failure in complex electrical systems.
Specialized Auto Switches: LED Indicators, Waterproof, and Illuminated Designs
These specialized switches are built to handle tough conditions, featuring IP67 rated sealing against dust and water ingress plus extra protection against vibrations that can damage regular components. Some models come with built-in LED indicators that light up when certain features activate, such as when traction control engages during slippery road conditions. According to recent market reports, around one third of all cars produced in 2024 have these glowing switches installed, making them much easier to see at night while driving. While capacitive touch technology continues gaining ground in car entertainment systems, many manufacturers still stick with traditional mechanical switches for critical safety functions because they just plain work better when failures happen. After all, nobody wants to fumble with touchscreen controls if power goes out during an emergency situation.
Critical Selection Parameters for Reliable Auto Switch Performance
Matching Current and Voltage Ratings to Load Requirements
Getting the right switch means paying attention to its current (amps) and voltage ratings if safety matters at all. Going over those specs even by about 15% risks problems like contacts sticking together or insulation failing completely, according to industry guidelines from IEC 60664-1. When designing systems, engineers need to think about regular running loads as well as those sudden power surges that happen when equipment starts up. This becomes really important with things like motors which draw extra current initially. A good rule of thumb is to pick switches that handle around 125% of what the system will actually need at its highest point. This gives some breathing room and helps avoid unexpected failures down the road.
Evaluating Contact Resistance and Mechanical Lifetime
When contact resistance stays low, preferably below 50 milliohms, there's less energy wasted as heat. Take a standard 20 amp switch for instance. If it has around 20 milliohms resistance, it will produce roughly 8 watts worth of heat when running. That calculation comes from basic electrical principles but doesn't need to be memorized. The life span of mechanical components generally matches what we expect from them. High quality switches can handle over 100 thousand operations without issues, whereas cheaper alternatives might start failing after just 10 thousand cycles, especially where vibrations are constant throughout daily use.
Environmental Durability: IP Ratings and Temperature Resilience
The switches we install beneath the vehicle's hood need at least IP67 rating to guard against dirt buildup and water ingress when things get wet. Temperature tolerance is another big factor these days. Most engines will see temperatures drop below freezing during winter starts, so specs need to handle down around -40 degrees Celsius. On the flip side, summer heat inside the engine compartment can push temps past 125°C, which puts serious stress on electronic parts. That's why modern designs incorporate silicone rubber seals that stand up to harsh chemicals too. Brake fluid leaks, motor oil spills, and saltwater corrosion from roads all threaten switch longevity over time. These gaskets act as a barrier against those common contaminants, keeping the switches working properly for years even in tough conditions.
Use-Case-Driven Selection: Matching Auto Switches to Application Demands
Choosing Switches for Harsh Environments: Vibration, Moisture, and Dust Resistance
Commercial and off-road vehicles demand IP67-sealed switches capable of withstanding dust and high-pressure washdowns. Vibration resistance is crucial in agricultural and construction equipment, where operational frequencies of 5–15 Hz can cause contact bounce. Manufacturers adhering to ISO 20653 standards have reduced early switch failures by 34% in rugged applications (Ponemon Institute 2023).
Certifications and Industry Standards (e.g., ISO, UL) for Automotive Reliability
Compliance with UL 508 (industrial control equipment) and ISO 8820-3 (road vehicle electrical systems) verifies baseline performance and safety. A 2024 Frost & Sullivan analysis revealed that fleets using certified switches experience 27% fewer warranty claims than those using non-certified components.
Balancing Cost, Longevity, and Functionality in Real-World Applications
Fleet operators typically select switches rated for 100,000+ cycles, accepting a 15–20% higher initial cost for extended service life. In contrast, recreational vehicles often use cost-effective SPST switches rated for 50,000 cycles, saving $18–$25 per unit while delivering reliable performance over 5–7 years under moderate usage.
FAQ Section
What are the main functions of auto switches in a vehicle?
Auto switches function primarily to control the on/off operation of electrical components and select the circuit path for various features in vehicles.
Why are automatic changeover switches important in vehicles?
Automatic changeover switches provide backup power solutions and ensure continuous operation of essential components even when the alternator fails.
How do mechanical switches differ from electrical configurations?
Mechanical switches offer physical engagement and immediate response like toggle, rocker, and push-button types, while electrical configurations like SPST and DPDT define the path and control multiple circuits electronically.
What factors should be considered when selecting auto switches?
Key factors include current and voltage ratings, contact resistance, mechanical lifetime, environmental durability (IP ratings), and application demands.
