Understanding the Role of Auto Relays in Vehicle Electrical Systems
How Auto Relays Enable Safe and Efficient Circuit Control
Auto relays basically serve as middlemen between the tiny control circuits in vehicles and the big electrical loads that need power. They work by using an electromagnet mechanism that either connects or cuts off circuits. This means those little dashboard switches can actually run things like headlights or fuel pumps without melting down from all that current. The whole point is keeping the sensitive control systems safe from getting hit with too much electricity at once. When done right, this setup cuts down on fire hazards and makes sure parts last longer before needing replacement.
The Function of Relays in Switching High-Current Loads With Low-Current Signals
Relays basically take those small electrical signals from things like switches or engine control units and turn them into something powerful enough to run bigger equipment. Most relays work with around 12 volts and currents between 0.1 to 0.5 amps coming in, then they can handle much higher loads up to 40 amps on the output side. What happens inside is pretty straightforward physics stuff. When electricity flows through the relay's coil, it creates a magnetic pull that moves a metal piece inside, which connects the main power circuit. This clever setup means parts such as car cooling fans or starter motors get all the juice they need directly from the battery, but we don't have to run thick heavy wires everywhere just for controlling these devices. The system works great because it separates control signals from actual power delivery.
Why Auto Relays Are Essential for Managing Power Distribution in Modern Vehicles
Modern vehicles rely on 30%%%–100 relays to manage increasingly complex electrical demands. They:
- Prevent switch degradation: A headlight switch without a relay would fail after ~1,000 cycles; with a relay, it lasts 100,000+ cycles
- Reduce voltage drop: Locating relays near powered devices minimizes resistance in power cables
- Enable automation: Relay banks execute timed operations for wipers, HVAC systems, and safety features without driver input
By isolating control logic from power distribution, relays maintain system stability even in extreme temperatures (-40°C to 125°C) common in engine compartments.
Core Functions of Auto Relays in Enhancing Circuit Performance and Protection
Auto relays serve two critical functions in vehicle electrical systems: safeguarding components and optimizing power delivery. These devices prevent overloads while maintaining consistent electrical performance across modern automotive applications.
Protecting Switches and Wiring From Excessive Current and Heat
Automotive relays act as intermediaries for high current loads, stopping them from hitting control switches or delicate wiring directly. This keeps those contact points from getting too hot, which is one of the main ways electrical systems fail when left unchecked. Take a look at some recent tests: relays can cut down switch temperatures by around 70% versus just running high current straight through (source: Electrical Systems Journal, March 2023 issue). The cooling effect means parts last longer overall. Plus, car makers can actually install smaller switches in dashboards and control panels without worrying about melting everything. Makes sense why so many modern vehicles rely on this setup these days.
Reducing Voltage Drop and Electrical Resistance Through Optimized Relay Use
Putting relays in strategic locations helps cut down on voltage loss when dealing with long wiring runs. When installed no more than 18 inches away from powered equipment, voltage drops in 12V systems go way down—from about 1.8 volts to just 0.3 volts—which represents roughly an 83 percent improvement. This makes sure critical components like headlights, fuel pumps, and cooling fans get consistent power supply without fluctuations. Another benefit is reduced overall resistance in circuits because less current flows through those thin gauge control wires. This actually helps keep things safe from potential electrical fires when the system runs at high loads for extended periods of time.
Key performance benefits:
- Maintains ¥–13.2V at critical loads during engine operation
- Reduces wiring bundle temperatures by 31°–45°F (17°–25°C)
- Enables 22% faster actuator response times through cleaner voltage signals
Types and Applications of Auto Relays in Automotive Systems
Common Relay Types: SPST, SPDT, Dual Make, Time-Delay, and Diode-Protected
Modern vehicles use five primary auto relay configurations to manage electrical loads. SPST (Single Pole Single Throw) relays handle basic on/off functions like headlight operation, while SPDT (Single Pole Double Throw) models enable dual-circuit control for systems like heated seats. Specialized designs address unique demands:
- Dual make relays maintain parallel circuits for safety-critical components
- Time-delay relays prevent overloads in accessories like power windows
- Diode-protected relays suppress voltage spikes in inductive loads such as fuel pumps
The automotive relay market is projected to grow to $26.23 billion by 2034 (GlobeNewswire 2025), driven by increasing vehicle electrification.
Electromechanical vs. Solid-State Auto Relays: Differences and Use Cases

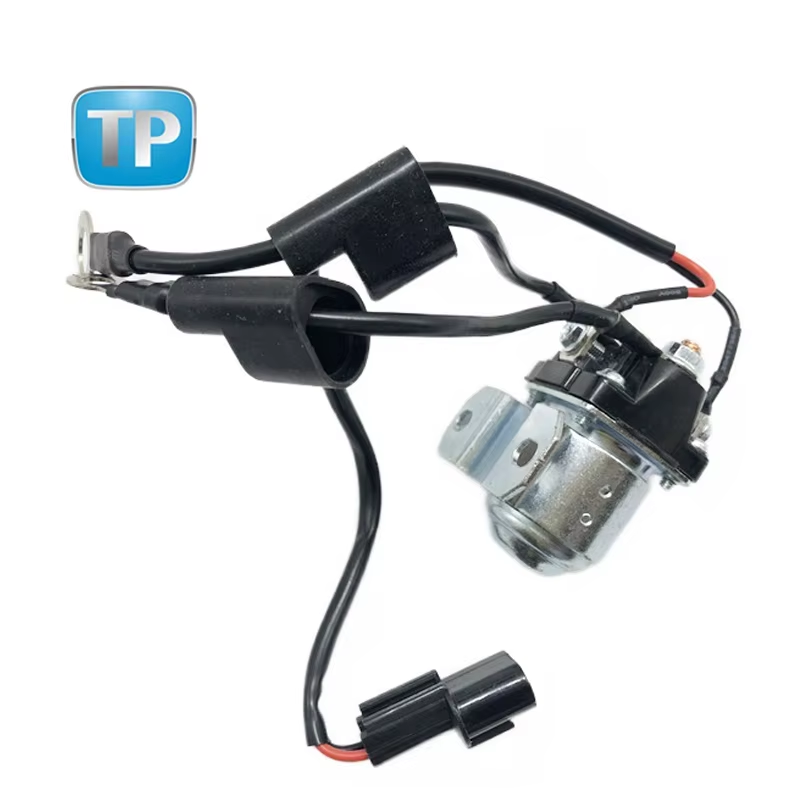

The old school electromechanical relays work by using actual metal contacts that get moved around when electricity flows through special coils. These types are still going strong for jobs that need lots of power, think starter motors in traditional vehicles. Then there's the newer solid state variety which basically uses tiny electronic switches instead. They respond way quicker, maybe about ten times faster actually, which matters a lot in sensitive stuff like modern engine computers. Most regular cars still rely on those electromechanical ones, probably somewhere around seventy two percent according to what I've read. But electric vehicles are starting to favor the solid state kind because they don't wear out from constant vibrations and they run completely quiet, something that makes sense given how important noise reduction is in EV design these days.
Application-Specific Relays in Fuel Pumps, Cooling Fans, and Lighting Systems
Manufacturers optimize auto relays for key subsystems:
- Fuel pump relays incorporate moisture-resistant seals and surge protection
- Cooling fan relays use thermal-rated contacts for continuous 40A+ loads
- Lighting relays feature dual-circuit designs for simultaneous high/low beam control
These specialized configurations reduce electrical system failures by 34% compared to generic relays (Pike Research 2023), highlighting the importance of application-specific engineering in modern automotive design.
Wiring, Terminal Designations, and Installation Best Practices for Auto Relays
Understanding Standard Relay Terminals (30, 85, 86, 87, 87a)
Auto relays use standardized terminal numbering to streamline wiring across vehicles. This system ensures consistent power routing while protecting sensitive control circuits:
Terminal | Function | Connection Type |
---|---|---|
30 | Continuous power input | Direct battery/alternator link |
85 | Coil control circuit | Switch or Electronic Control Unit (ECU) signal |
86 | Coil ground connection | Chassis or dedicated ground path |
87 | Normally open load circuit | High-current device power output |
87a | Normally closed load circuit | Alternate output when relay is off |
Mismatching terminals 87 and 87a—a common installation error—can cause unintended device activation or circuit shorts.
Correct Wiring Configurations for Reliable Auto Relay Operation
Proper auto relay wiring requires matching wire gauges to current loads. For example, 12V headlight relays typically need 14-gauge power wires (terminal 30 to 87) and 18-gauge control wires (85/86). Always route high-current cables away from ECU harnesses to prevent electromagnetic interference.
Proper Grounding, Power Routing, and Installation Techniques
Industrial testing shows relays with dedicated grounding (terminal 86 to chassis via 16-gauge wire) fail 35% less often than those sharing ground paths. Apply dielectric grease on terminals to combat corrosion in humid environments, and mount relays vertically to prevent debris accumulation in high-vibration areas like engine compartments.
Diagnosing and Preventing Auto Relay Failures for Long-Term Reliability
How to test an auto relay using a multimeter and power supply
To start testing, switch the multimeter to the ohms setting (Ω) and check the resistance across terminals 85 and 86. If the meter shows somewhere between 50 and 120 ohms, that's generally considered good for most coils. When checking contacts, connect 12 volts to terminal 85 as positive and 86 as negative, then look at continuity between terminal 30 (which is common) and terminal 87 (the normally open one). Many technicians find that relays which stay completely silent without clicking when activated usually point to problems with the coil itself. The absence of that familiar click can be a telltale sign something isn't working right inside the relay housing.
Common failure symptoms: clicking, no response, or intermittent operation
Persistent clicking without electrical engagement occurs in 23% of auto relay failures (Vehicle Electronics Journal 2023). Intermittent operation frequently stems from oxidized contacts unable to maintain stable current flow. Total failure to respond typically indicates broken coil windings or corroded control circuit connections.
Root causes of relay damage: coil burnout, contact arcing, and environmental stress
Coil burnout accounts for 41% of premature failures, often due to voltage spikes exceeding 14V in charging systems. Contact arcing creates resistance hotspots that melt silver-nickel alloy terminals. Environmental factors like engine compartment heat (>185°F/85°C) and road salt accelerate dielectric breakdown in relay housings.
Best practices for ensuring auto relay longevity in harsh conditions
- Install diode-protected relays in circuits with inductive loads such as fuel pumps and cooling fans
- Apply dielectric grease to connector terminals to prevent oxidation
- Mount relays vertically to minimize debris accumulation
- Replace every 100,000 miles or 160,000 km as preventive maintenance
Regular multimeter testing combined with OEM-spec replacement intervals reduces auto relay-related breakdowns by 68% compared to reactive replacement strategies.
FAQs
- What is an auto relay? An auto relay is a device used in vehicles to switch high-current electrical loads using low-current signals, protecting sensitive control circuits from high power loads.
- Why are relays important in cars? Relays are crucial for preventing switch degradation, reducing voltage drop, and enabling automation within vehicle electrical systems.
- How do you test an automotive relay? Testing involves checking resistance across coil terminals using a multimeter and verifying contact continuity when activated with a power supply.
- What are common symptoms of relay failure? Common symptoms include persistent clicking without engagement, intermittent operation, and complete non-response of connected devices.
